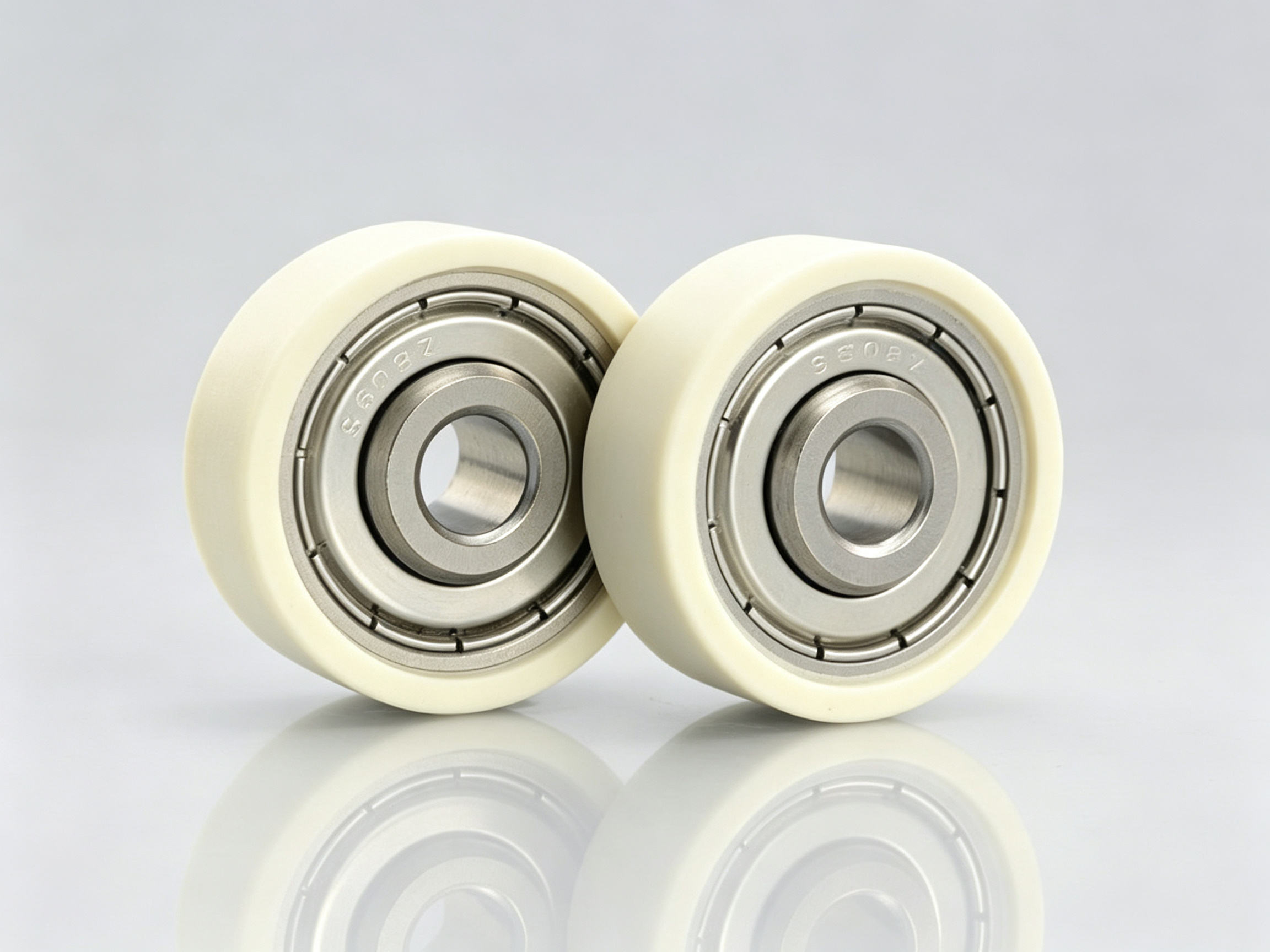

A TPU part that passes a single trial run does not always mean the process is ready for stable mass production. Hidden risks such as splay from moisture absorption, dimensional drift from elastic recovery, and intermittent flash from minor parting line wear can all cause consistent quality issues in full production.
Reliable TPU injection molding relies on far more than a fixed set of barrel temperature and injection pressure settings. It is a systematic engineering process covering material grade selection, part and mold design, process control, and production validation. Every decision shapes final part consistency and production yield. This guide breaks down the core decision points across the full TPU injection molding workflow to help teams move from acceptable prototypes to stable mass production.
1. Process Route Selection & TPU Grade Matching
1.1 Comparison of TPU Manufacturing Routes
Before starting mold development, you should first select the most suitable TPU manufacturing method based on project stage, production volume, and performance requirements. Different processes vary widely in cost, lead time, and final performance, and choosing the wrong route can lead to wasted development resources.
| Manufacturing Process | Caso de uso principal | Main Limitation |
|---|---|---|
| 3D-printed TPU | Early-stage fit check, feel validation, and flexible assembly testing | Internal crystalline structure differs significantly from injection-grade material; mechanical and rebound properties do not match production parts |
| Vacuum-cast polyurethane | Low-volume appearance verification and basic functional evaluation | Thermoset forming system with different material properties and production logic from thermoplastic TPU injection |
| Injection-molded TPU | Mass production with strict requirements for dimensional accuracy and consistent material performance | Requires dedicated tooling with higher upfront investment and longer validation cycle |
| Silicone molding | Low-volume parts with special requirements for temperature resistance, sealing, or compression set | Mold structure, curing process, and material behavior are not compatible with TPU injection |
| Other TPE molding | Projects with specific priorities for cost, bonding, or tactile feel | Overall performance cannot fully match TPU’s wear resistance, rebound, and oil resistance |
One important note: the term “polyurethane injection molding” can sometimes refer to thermoset polyurethane systems. These materials cure through chemical reaction and cannot be remelted by heat. They follow completely different processing rules from thermoplastic TPU and are not interchangeable.
1.2 Core Decision Factors for TPU Grade Selection
TPU is not a single uniform material. Differences in chemical formulation, hardness grade, and modified additives directly affect environmental resistance, processing behavior, and service life. Vague specifications such as “TPU 85A” leave too much uncertainty for consistent mass production quality.
Chemical system selection: Polyester-based TPU generally delivers better abrasion resistance and oil resistance, making it suitable for industrial transmission and sealing applications. Polyether-based TPU offers superior hydrolysis resistance and performs better in humid or water-exposed outdoor environments. Always finalize selection based on material datasheets and real-world testing, not general assumptions.
Impact of hardness: Hardness affects more than just tactile feel. Softer TPU grades are more prone to deformation during ejection and may stick to the mold. Harder grades may fail to meet required sealing or bending performance. Even two grades with the same nominal hardness can differ noticeably in melt flow, elastic recovery, and aging resistance.
A complete material specification should include at minimum:
- Resin manufacturer, full grade name, and acceptable hardness tolerance range
- Color system specification and clear rules for regrind allowance and percentage
- Detailed service environment description and required functional test standards
- Required material certificates and inspection documents for production delivery
2. Part & Mold Design: Foundation of Mass Production Stability
While TPU’s high elasticity can simplify undercut demolding to some degree, it does not eliminate standard DFM (Design for Manufacturability) rules for injection molding. Poor part and mold design will cause recurring sticking, deformation, and dimensional instability throughout mass production.
2.1 Core Principles of Part Geometry Design
Uniform wall thickness design: Wall thickness should be as consistent as the part function allows. Thick sections cool and shrink more slowly, creating a high risk of sink marks and internal voids. Abrupt wall thickness changes create local stiffness differences, leading to inconsistent elastic recovery after ejection and dimensional variation.
Radius transitions and draft design: Rounded corners reduce stress concentration and improve melt flow during filling. Draft angles should be set based on material hardness, draw depth, and surface texture. Soft TPU can sometimes be stripped over undercuts, but this always requires trial validation to ensure no tearing or permanent deformation occurs. Deep or sharp undercuts still require sliders, lifters, or other dedicated mold actions.
Defined measurement conditions for critical dimensions: For elasticity-sensitive features, drawings must specify measurement timing and loading state — whether dimensions are checked in free state or after assembly/compression. The effect of elastic recovery must be included in acceptance criteria.
2.2 Key Optimization Points for Mold System Design
Mold design should focus on three core goals: stable filling, smooth ejection, and uniform cooling. All design choices should be optimized for TPU’s specific material behavior.
- Gate and runner system: Gate position must balance filling balance, packing effectiveness, and appearance requirements. Overly narrow runners and gates increase shear rate, alter melt viscosity, and prevent effective packing pressure from reaching the end of the cavity.
- Ventilation system: Vents should be placed at melt flow ends, around inserts, and other air-trapping locations. Poor venting causes not only short shots but also material burning from high-pressure compression, which degrades appearance and material performance.
- Parting line control: TPU melt has relatively low viscosity. Even minor parting line wear or uneven clamping clearance can cause intermittent flash, especially when process parameters fluctuate.
- Uniform cooling system: Uneven mold temperature leads to surface quality differences and inconsistent shrinkage, which eventually cause warpage and demolding difficulties.
- Mold surface texture: Highly polished mirror surfaces are not always the best choice for soft TPU. Many soft TPU grades release more consistently from a properly textured surface with less sticking risk.
- Diseño del sistema de eyección: Ensure sufficient ejection contact area to avoid ejector marks or part puncture. For thin-walled soft seals, stripper plate ejection is recommended. Deep-cavity parts can benefit from air ejection assist to eliminate sticking caused by vacuum suction.
One critical reminder: there is no universal shrinkage value for TPU. Shrinkage must be determined based on the specific grade, wall thickness, gate location, and process parameters. Never machine mold steel using generic plastic shrinkage data.
3. Full-Process Injection Molding Control Guidelines
3.1 Material Drying: The Most Overlooked Critical Step

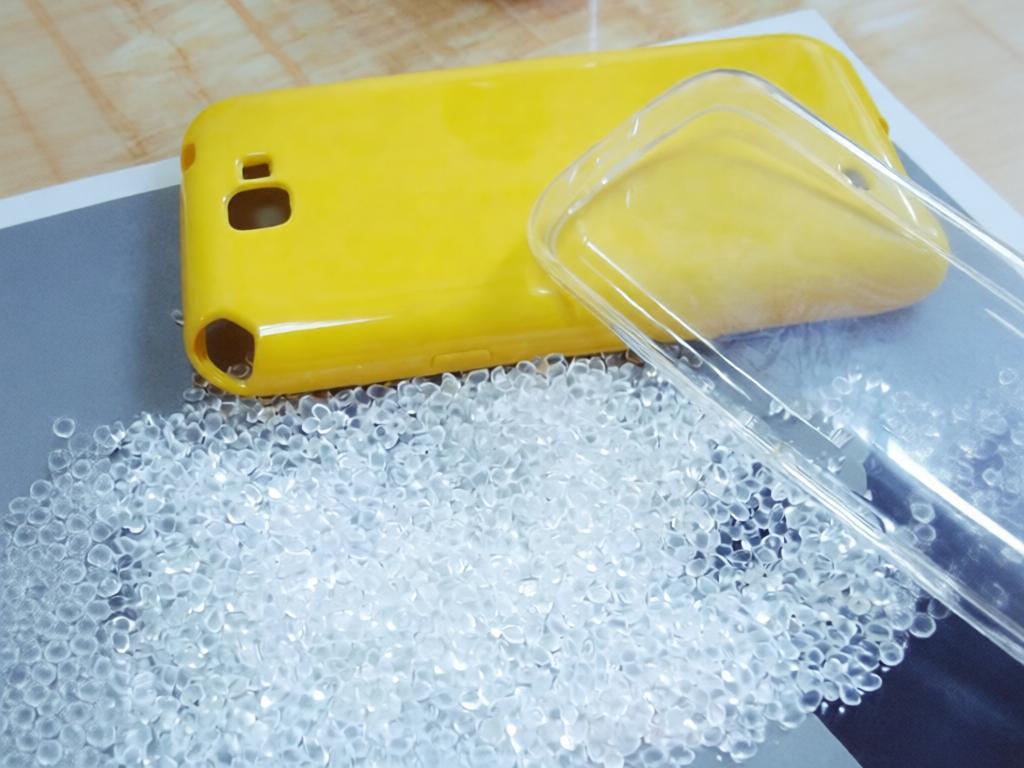

TPU pellets are highly hygroscopic. Even when they appear dry, absorbed moisture is enough to cause molding defects. Moisture vaporizes inside the heated barrel, causing surface splay and internal bubbles. Less visibly, it alters melt viscosity, accelerates material degradation, and reduces mechanical performance.
Follow these core drying control principles:
- Strictly follow the resin supplier’s specified drying temperature and duration, not generic drying standards
- Regularly calibrate dryer dew point to keep moisture content within allowable limits
- Set appropriate hopper residence time to ensure proper drying while avoiding prolonged heat exposure
- Seal and protect dried material during transfer and loading to minimize ambient exposure
- Establish sealed storage rules for opened bags and unused material to prevent re-absorption of moisture
3.2 Building a Repeatable Process Window
The goal of production process development is not a single “best parameter set,” but a stable, repeatable process window. As long as parameters stay within this window, production will consistently produce acceptable parts, even when resin batches change or equipment undergoes minor adjustments.
Key focus areas when building the process window:
- Melt temperature control: Barrel and nozzle temperatures must ensure uniform plasticization without causing thermal degradation from excessive residence time. High shear accelerates thermal damage, leading to discoloration and reduced performance.
- Injection speed matching: Injection speed should be adjusted to match flow path length and wall thickness. Long, thin flow paths require different speed strategies than short, open cavities. Surface quality and trapped air patterns indicate whether the selected speed is appropriate.
- Screw and back pressure settings: Proper screw speed and back pressure produce a uniform melt while avoiding unnecessary shear heating.
- Packing and cooling: Packing pressure directly controls dimensional convergence and sink marks. Insufficient packing increases dimensional variation; excessive packing contributes to flash, high internal stress, and difficult demolding. Cooling time must ensure the part has enough strength to eject without stretching or deformation.
3.3 Correlating Process Settings to Part Results
Process parameters must ultimately be validated against finished part performance. Teams should establish clear correlations between settings and part metrics to verify true process window stability:
- Compare part weight against fill pattern to confirm filling consistency
- Record fluctuation ranges for critical appearance and functional dimensions
- Monitor demolding stability across continuous production cycles for sticking or ejection deformation
- Verify that assembly performance and core function remain consistently acceptable
4. Systematic Troubleshooting for Common TPU Molding Defects
Injection molding defects are signals that some part of the production system is out of balance. Blindly adjusting pressure or temperature without root cause analysis often only masks symptoms temporarily, and the problem will reoccur later.
| Common Defect | First Priority Check | Material & Process Causes | Mold-Related Causes |
|---|---|---|---|
| Splay / silver streaks | Drying records and ambient exposure time | Excessive moisture content, too-high melt temperature, excessive shear heating | Undersized gate, high-shear runner design |
| Bubbles / internal voids | Defect location and corresponding wall thickness | Moisture in material, insufficient packing pressure or time | Localized thick sections, poor venting |
| Flash / burrs | Flash location and frequency pattern | Too-low melt viscosity, excessive packing pressure | Parting line wear, poor clamping seal, platen deflection |
| Tiro corto | Short-shot location and melt flow end pattern | Low melt temperature, insufficient injection pressure or speed | Restricted gate or runner, inadequate venting |
| Sticking / ejection deformation | Ejector mark locations and ejection force direction | Premature ejection with insufficient cooling, too-high mold temperature | Insufficient draft angle, inappropriate surface texture, inadequate ejection support |
| Black specks / discoloration | Material residence time, machine purging history | Thermal degradation of material, contaminated raw material | Dead spots in hot runner system, residual carbonized material in flow channels |
| Desviación dimensional | Measurement timing, part conditioning environment and duration | Inconsistent elastic recovery, unstable melt plasticization | Uneven cooling, gate size influence on shrinkage |
Defect investigation should follow a fixed sequence: first confirm the location and frequency pattern of the defect, then review material and equipment run records, then inspect corresponding mold features, and finally make targeted process adjustments. After corrective action, run enough consecutive cycles to confirm the defect is fully eliminated, not just temporarily improved.
5. Process Validation System Before Production Release
A single acceptable prototype only proves the mold is capable of producing a good part. The core goal of production validation is to confirm that the entire production system can consistently and reliably produce conforming parts under normal operating conditions.
5.1 Basic Requirements for Pilot Run Validation
Production validation runs must meet three basic conditions: use approved production resin, run on the final production mold, and operate on the intended production machine. For multi-cavity molds, parts from each cavity must be inspected individually with full traceability retained.
Validation should cover not only steady-state production after startup, but also process stability during shutdown restarts and material changes, to simulate the real-world fluctuations of full production.
5.2 Complete Validation Item Checklist
A complete TPU injection molding process validation should include at minimum:
- Stable multi-cycle production run: Document the full process parameter window, not just the single setting that produced the best sample
- First article full-dimensional inspection: Verify all functional dimensions and appearance requirements against the drawing, with a formal inspection report on file
- Standardized measurement timing: For dimensions sensitive to rebound or post-shrinkage, agree on a uniform conditioning period before measurement
- Functional performance testing: Validate core functions under simulated service conditions — for example, leak testing for seals, fatigue bending testing for flexible tabs
- Full traceability system: Link inspection results to resin lot, production batch, and cavity number with complete traceable records
- Production control plan: Define routine inspection items, sampling frequency, rejection criteria, and abnormal handling procedures
- Change control rules: Define when revalidation is required for material, mold, or equipment changes, and set clear approval boundaries for process adjustments
5.3 Limitations of Prototype Processes
Prototype-stage processes cannot be treated as equivalent to production validation. 3D-printed TPU prototypes work for assembly and feel checks, but cannot replicate mold shrinkage, gate effects, or the true mechanical properties of molded material. Vacuum casting supports low-volume evaluation, but production approval must still be based on parts from a formal injection molding process.
In short, the key question for production release is never “does this sample pass?” It is “can the entire production system consistently produce conforming parts over time?”
Conclusión
Reliable TPU injection molding mass production is a connected, systematic engineering process. Application requirements drive material selection, material properties constrain part and mold design, design defines process control direction, and systematic validation ultimately confirms production feasibility.
During project development, avoid locking in a mold design based only on a vague hardness specification, and never approve mass production based on a single good sample. By defining material grades and functional requirements up front, controlling design and process risks early, and establishing complete validation standards, teams can achieve stable, efficient mass production.
