In metal fabrication and industrial manufacturing, laser welding and MIG (Metal Inert Gas) welding rank among the most widely adopted welding processes. Both serve applications ranging from precision sheet metal work to structural component production and custom parts processing, but many production teams find it challenging to define their performance limits and ideal use cases during process selection.
Drawing on hands-on precision manufacturing expertise, PartsMastery breaks down the fundamental distinctions between these two processes across six core dimensions. This guide will help you quickly identify the optimal welding solution aligned with your specific production requirements.
1. Energy Source & Welding Mechanism
Laser welding relies on a high-energy-density focused laser beam as its heat source. The beam irradiates the metal surface to rapidly melt material and form a joint, classifying it as a non-contact manufacturing process. Filler wire can be added based on workpiece needs, but the weld bead forms primarily through melting of the base metal itself, delivering a uniform weld microstructure.
By contrast, MIG welding generates heat from an electric arc struck between a continuously fed filler wire and the workpiece. It melts both the wire electrode and base metal simultaneously to build the weld. As a contact-based arc welding method, it depends entirely on filler material to fill and shape the joint.
2. Welding Speed & Production Efficiency
With extremely concentrated energy, laser welding forms a weld pool very quickly. Its travel speed can reach up to 100 mm/s, delivering overall productivity 4 to 10 times higher than conventional MIG welding. For high-volume production of standardized workpieces, this translates to significantly shorter lead times and improved delivery throughput.
MIG welding is constrained by weld pool stability and wire feed rates. Typical travel speeds fall between 10 and 25 mm/s, with lower single-pass efficiency than laser welding. Its strength lies in multi-pass build-up capability for thick workpieces, making it well suited for flexible, non-standardized production environments.
3. Heat-Affected Zone & Workpiece Distortion
Laser welding delivers low, highly localized heat input. The heat-affected zone (HAZ) typically measures less than 1 mm wide, and the bulk workpiece experiences minimal temperature rise. This results in nearly negligible post-weld distortion. For thin sheet metal and precision component applications, parts retain their dimensional accuracy with virtually no warping or deformation.
MIG welding introduces higher total heat input with broader thermal diffusion. The HAZ can reach 3 to 6 mm in width, heating the workpiece significantly across a larger area. When joining thin materials, distortion and warping are common, often requiring additional straightening operations to restore dimensional accuracy.
4. Weld Quality & Post-Processing Costs

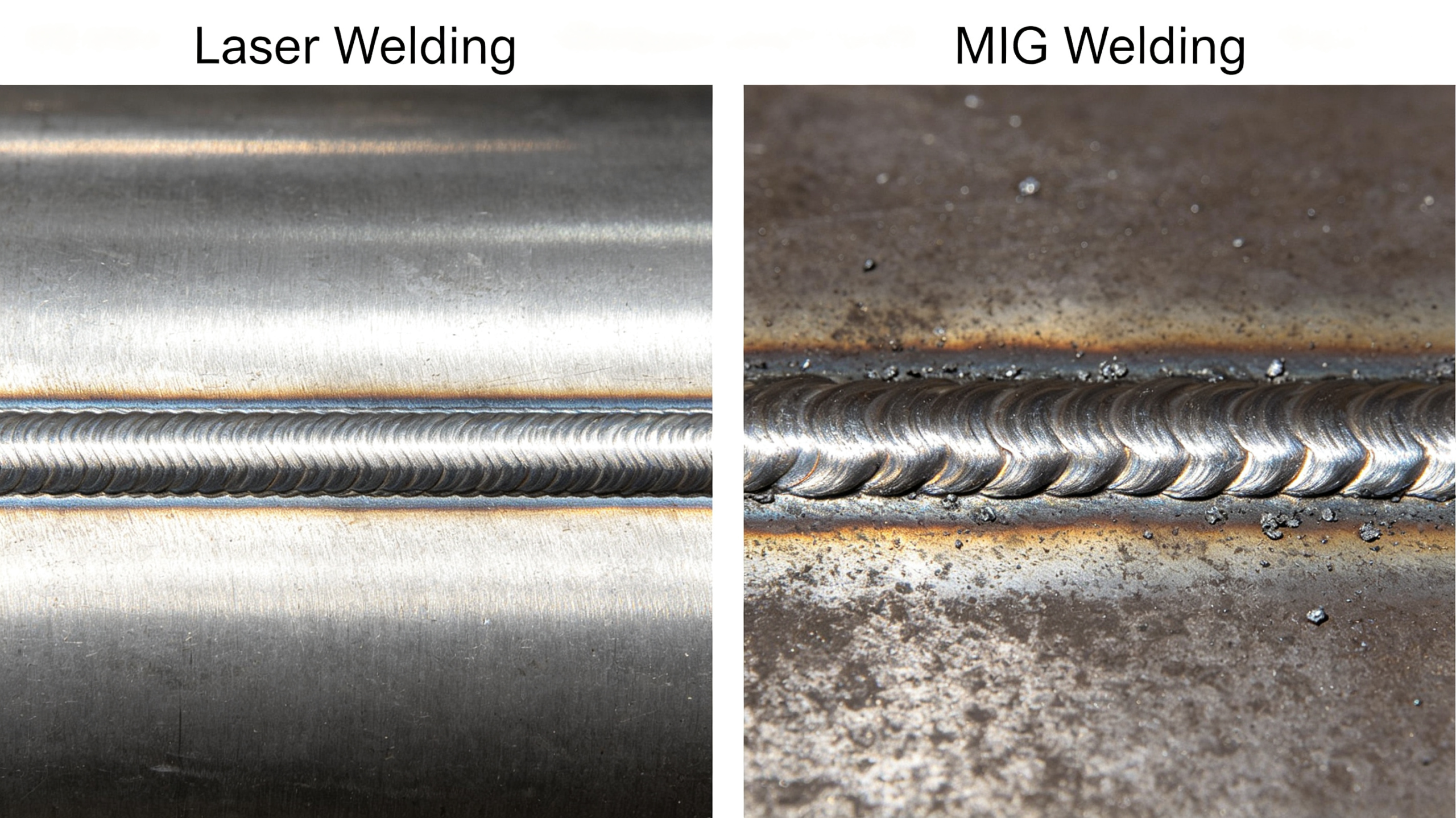

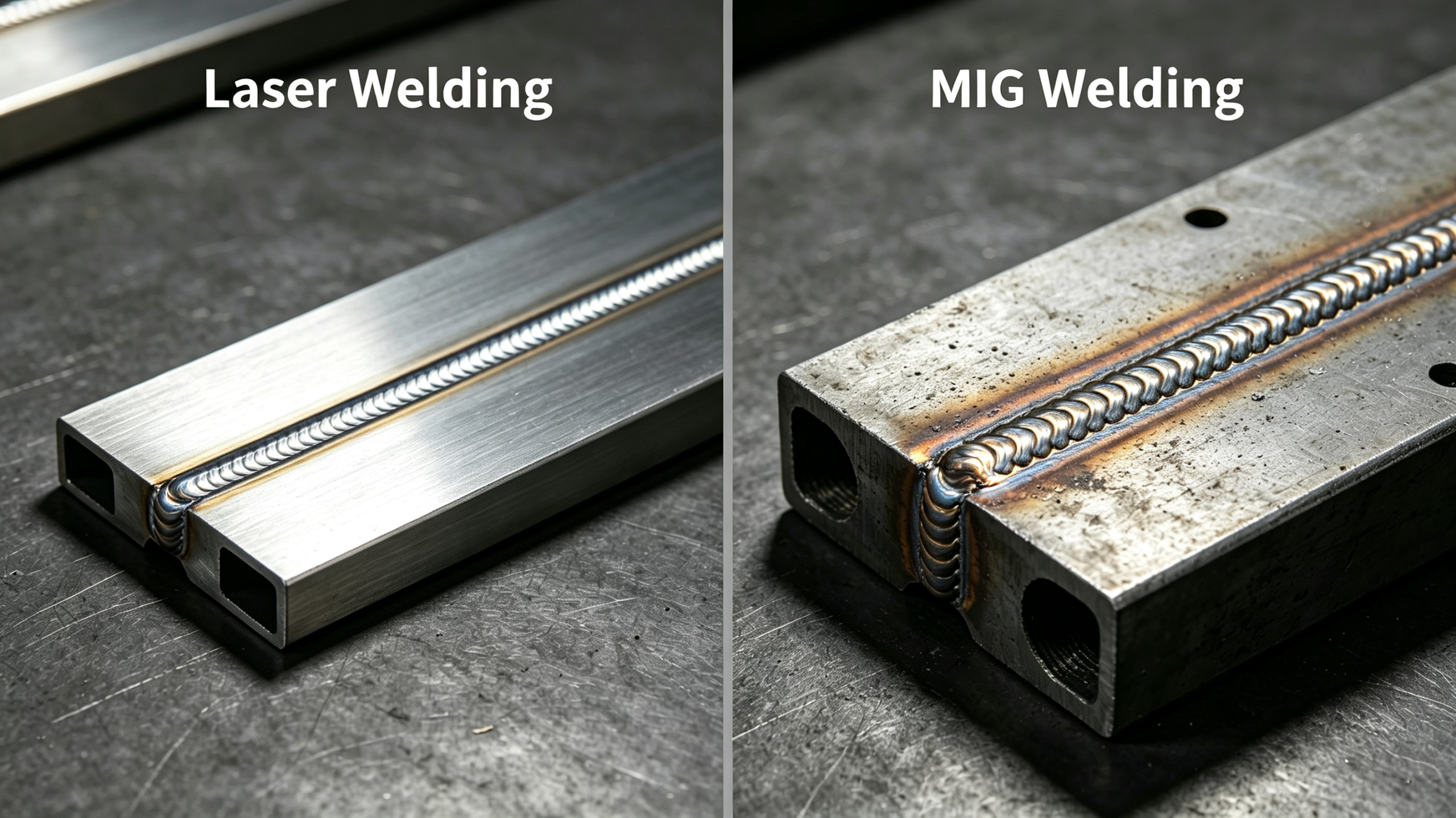

The laser welding process operates with high stability and produces very little spatter. It creates a narrow, smooth and clean weld bead with a consistent, aesthetic surface finish. In most cases, no post-processing such as grinding or cleaning is required after welding. Parts can move directly to subsequent production stages, reducing labor and time costs substantially.
MIG welding typically generates considerable spatter and slag during operation. The resulting weld surface is rough and uneven, usually requiring multiple post-processing steps including grinding, slag removal and polishing. This adds both direct processing costs and extended overall production cycle time.
5. Joint Fit-Up Tolerance & Application Compatibility
Laser welding features a small focal spot and concentrated energy, which imposes strict requirements on joint gap and alignment precision. Generally, the root gap must be less than 10% of the material thickness. It excels at joining thin sheets, precision stamped parts and high-tolerance structural components.
MIG welding uses filler wire to effectively bridge gaps in joint fit-up. It has lower demands on workpiece assembly accuracy and can accommodate wider gaps and irregular joint geometries. This makes it more versatile for thick plate welding, structural assembly and repair welding applications.
6. Equipment Investment & Operating Expenses
Industrial automated laser welding system for high-precision mass production
Laser welding systems carry a higher upfront capital cost. A complete production setup typically costs several times more than an equivalent MIG welding station. However, ongoing consumable costs are low, limited mainly to protective optics and shielding gas. Over long-term high-volume production, it delivers clear advantages in per-unit processing cost.
MIG welding has a much lower entry cost, with entry-level systems available at a fraction of the price of laser equipment. But day-to-day consumables are more varied, including welding wire, contact tips, gas nozzles and shielding gas. It also requires more skilled operators, so total long-term operating costs for batch production are often higher than initially assumed.
How to Choose the Right Welding Process
Neither process is inherently better overall — the optimal choice depends entirely on your specific production priorities:
- Choose laser welding if you work primarily with thin-plate precision parts in high-volume standardized production, and value high speed, minimal distortion and reduced post-processing.
- Choose MIG welding if your focus is thick-plate structural work and high-mix low-volume production, and you need flexibility for complex joint designs and on-site operations.
PartsMastery offers custom metal manufacturing services supporting both laser welding and MIG welding processes. From prototype development to full-scale batch production, we match the most suitable welding method to your part characteristics, ensuring both precision and on-time delivery.
